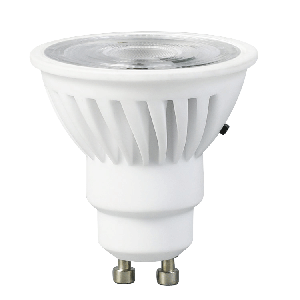

LED Ceramic GU10 9-10W 60° | GU10

BASIC INFORMATION:
LED Ceramic GU10 CCT
Base: GU10
LED board: Aluminium
LED: SMD2835
Driver: Non-isolated IC driver
Housing: Ceramic shell, PC diffuser
Beam Angle: 60°
Application: Shops, restaurants, hotels, coffee bar,etc.
certification image 1

TECHNICAL CHARACTERISTICS

Safety according to-Directive 2014/35/EU(LVD)
EN 62560: 2012+A1:2015+A11:2019
EN 62471: 2008
EN 62473 :2015

EMC according to- Directive 2014/30/EU(EMC)
EN 55015: 2019+A11:2020
EN 61547: 2009,
EN 61000-3-2:2014,
EN 61000-3-3:2013

ERP according to-Directive (EU) 2019/2020 and EEL (EU) 2019/2015

Code	Input	Power	PF	Lumen	C.R.I	C.C.T.	Dim
LED Ceramic GU10 9-10W 60°
HX-S9C-GU10 CCT IC60DC	175-265V	9 W	0.5	765LM	80	CCT	Dim
HX-S10C-GU10 CCT IC60DC	175-265V	10 W	0.5	850LM	80	CCT	Dim
